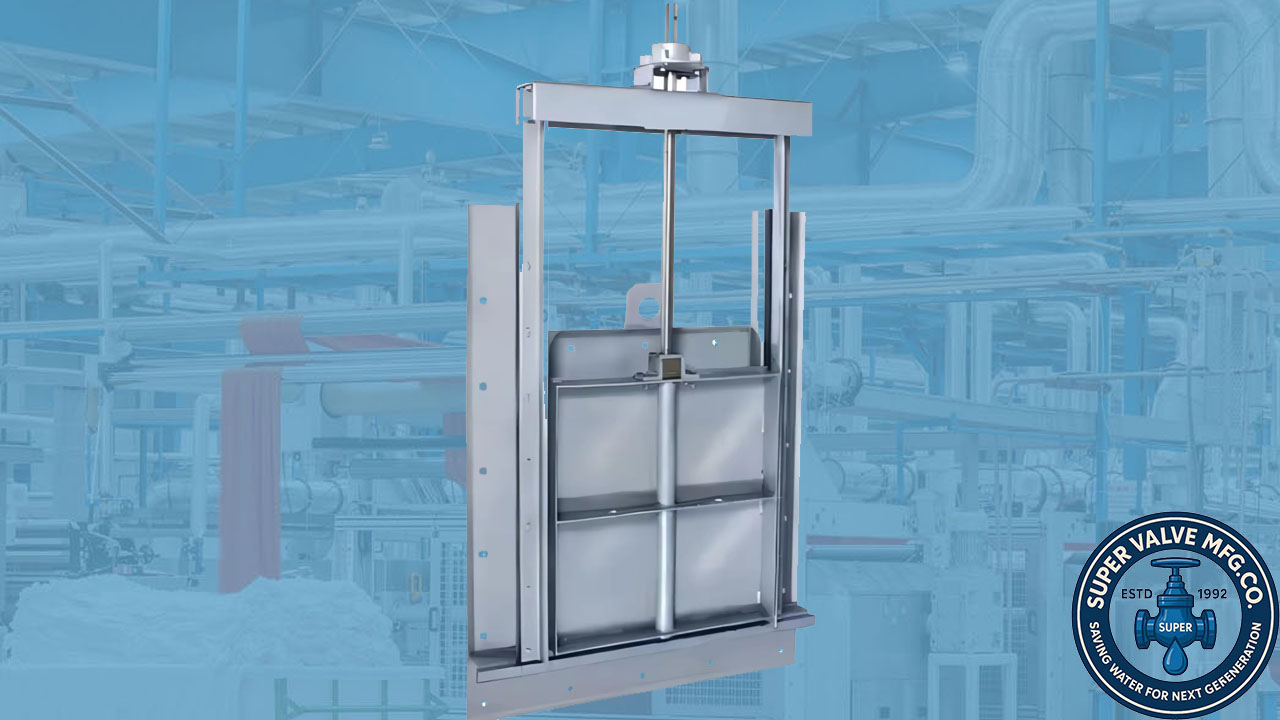

Open Channel Sluice Gate

Open Channel Sluice Gate

Introduction

The gates are made as per SUPER design standard. These are generally used in open channel of water or sewage. These gates are fixed / mounted between two parallel walls used to regulate the flow within as well as in and out of an open channel.

Features and benefits

• These are suitable for seating as well as unseating water head but the height of water in both cases should be less than height of shutter.
• These are light weight, economical Gate assemblies for faster erection.
• The important thing to consider during design is that the height of the water in the closed state should be less than the height of the gate.
• These gates can be self content with operating head fixed on the gate frame.
• These gates can be provided with flush bottom wall mounted invert bottom arrangement.
• Depending on the operating pressure and operation frequency rubber seals, metal seals neoprene/ Natural / EPDM Rubber seals with rubber retaining bar are used.
• These gates are provided with Pin and Knuckle type stem connection.
• Suitable coating for corrosion resistance, weather resistance, and salt water resistance will be adopted for long life.
